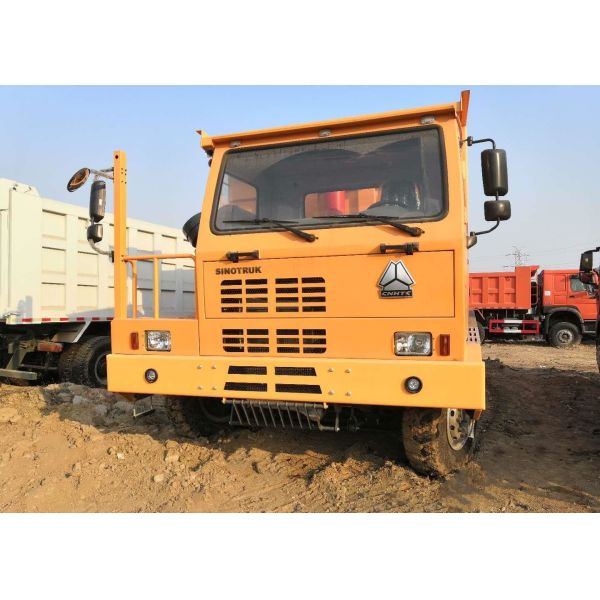

    371HP Off Highway Truck , Yellow Color Heavy Duty Tipper Trucks 70 Tons Load

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO Mining Dump Truck
    Model Number : ZZ5707S3840AJ
    Certification : CCC,ISO,SGS
    Price : $50000-$80000 per unit
    Payment Terms : LC,TT, Western Union
    Supply Ability : 300 Units Per Month
    Delivery Time : 30-45 Days
    • Product Details
    • Company Profile

    371HP Off Highway Truck , Yellow Color Heavy Duty Tipper Trucks 70 Tons Load


    371HP Off Highway Truck , Yellow Color Heavy Duty Tipper Trucks 70 Tons Load


    Description:


    This model can meet the requirements of severe environment like construction site and

    mining area.which can fullfiled you of short distance transportation of mining rock and

    soil as well as engineering construction.


    Mining Trucks are engineered for performance, designed for comfort and built to last. These powerful haul trucks are able to move more material at a lower cost.


    Characteristics:

    • Dump truck is the vehicle that unloads cargo by hydraulic or mechanical lift.
    • Can be divided into backward tilting and lateral tilting.
    • Loading, downloading and transport earthwork, gravel and bulk materials.
    • Dump trucks often work with excavators, loaders, pavers, belt conveyors and other construction machinery.
    • Common drive types of dump trucks usually have 4*2, 6*4, 8*4 and so on.

    371HP Mining Truck
    ModelZZ5707S3840AJ
    CabHW7D
    Engine(Hp)WD615.47T2, 371,Euro 2 emission standard
    Power(Kw)273
    TransmissionHW21712
    Front AxleHF12
    SteeringZF8118(Left hand driving)
    Rear AxlesAC26
    Wheels & Tyres10.0/14.00-25(36PR)
    Carriage Internal Dimensions(mm)5800x3100x1700
    Cubage (m3)30.56
    Steel thickness of Carriage(mm)Floor:14mm/Side:12mm
    Hydraulic Lift of CarriageFront Lift
    CabSINOTRUK HW7D single side cab,no bunk,left driving,air conditioner.
    ClutchSINOTRUK CH430-21-model diaphragm-spring clutch,hydraulically operating with air assistance
    TransmissionSINOTRUK HW21712 transmission ,12 forward and 2 reverse with HW70 power takeoff
    Front AxleSINOTRUK HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes.
    SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.
    Rear AxlesSINOTRUK AC26 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle,ratio:8.51;Option:10.47
    Brake System

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Wheels & TyresRims:10.0-25,12 hole-steel ;Tyres:14.00-25(36PR) Mining tyre with 1 Spare tire.
    Electrics

    Operating voltage:24V,negative grounded

    Starter:24V,7.5 Kw

    Alternator:3-phase,28V,1540 W

    Batteries:2x12 V,180 Ah Batteries

    horn,headlamps,fog lights,brake lights,indicators and reverse

    light

    Oil TankD type-500L Aluminum alloy fuel tank
    Dimensions

    Overall length x width x height 8800×3400×4340

    Wheel base 3800+1500

    Weight in kg

    Gross vehicle weight 75000

    Kerb weight (Kg) 23000

    Rated load weight(Kg) 52000

    Front axle loading capacity 12000

    Rear axles loading capacity 2x26000

    Performance

    Maximum driving speed (km/h) 46(10.47)/57(8.51)

    Fuel consumption (1/100 km) 50

    PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

    Advantage

    • Big horsepower, you can load more goods, and climb the slope without worry.
    • Robust and durable, saving maintenance costs and longer vehicle life.
    • The reinforced chassis and the reinforced cargo box are available. It makes the vehicle stronger and carry more. If loading the ore, the vehicle will be more wear-resistant.
    • Original spare parts worth $500 will be sent following trucks , including maintenance parts and consumables.
    • Fast delivery time, we can arange production according to your needs exactly and quickly
    • professional import and export dealing precedure, make customs clearance more high efficiency

    371HP Off Highway Truck , Yellow Color Heavy Duty Tipper Trucks 70 Tons Load
