HOWO 6x6 Full Wheels Drive Heavy Duty Dump Truck 22cbm Capacity

Ask Lasest Price
Brand Name :	SINOTRUK HOWO Heavy Duty Dump Truck
Model Number :	ZZ3257N3857D1 Heavy Duty Dump Truck
Certification :	CCC,ISO,GCC
Price :	FOB 38000-43000 USD Per Unit
Payment Terms :	L/C, T/T
Supply Ability :	300 Units Per Month
Delivery Time :	30 Working Days

Add to Cart

Product Details
Company Profile

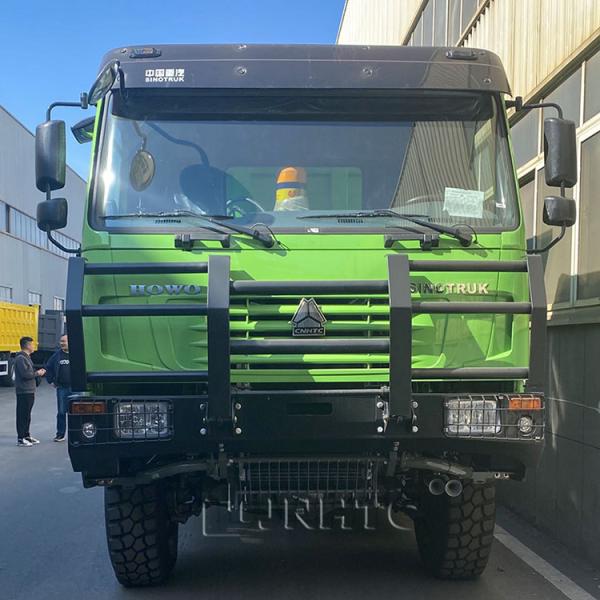

HOWO 6x6 Full Wheels Drive Heavy Duty Dump Truck 22cbm Capacity

SINOTRUK HOWO Euro2 371HP 10 Wheels 6x6 Full Wheels Drive Dump Truck

It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works

Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc.

Power range: 266PS - 420PS.HOWO Leader In Heavy Duty Truck Industry Driving King On The Road

New HOWO dump truck, High Quality , More Lighter,

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.

Specification:

SINOTRUK HOWO Euro2 380HP 10 Wheels 6x6 Full Wheels Drive Dump Truck

Chassis Model	ZZ3257N3857D1
Driving Type	LHD (RHD is optional)
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW19710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	STR Steering with doubleT-cross section beam
Rear Axle	ST16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	580023001500 mm, 20 CBM, Floor 8mm Side 6mm
Overall Dimension	880025503450mm

All-Wheel Drive Truck:

Due to the fact that all wheels are driving wheels, fully utilizing the full adhesion mass of the car, the car has

a greater driving force and the ability to overcome obstacles and prevent slipping.

A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also

known as a dump truck. It consists of components such as a car chassis, hydraulic lifting mechanism, cargo

compartment, and power take-off device.

The carriage of a dump truck is divided into two types: backward tilting and lateral tilting. The piston rod

movement is controlled by the operating system, and backward tilting is more common. Pushing the piston

rod causes the carriage to tilt, with a few cases of bidirectional tilting.
